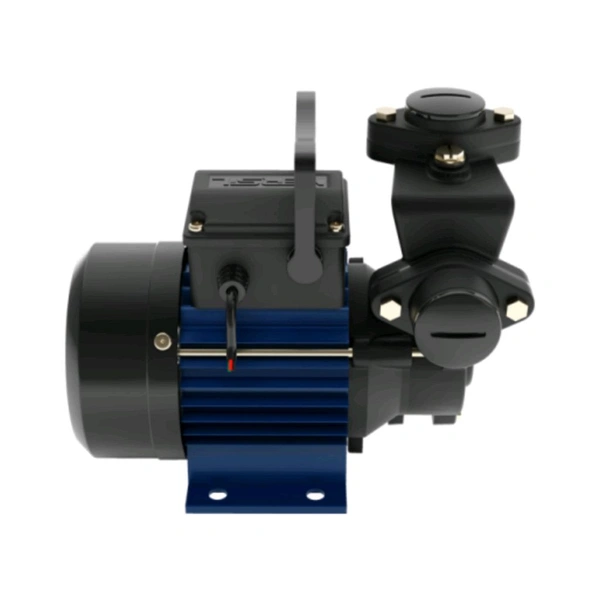

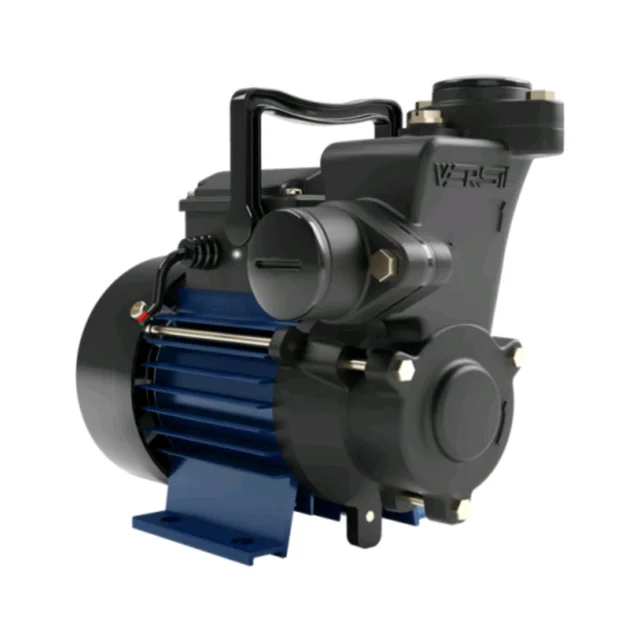

Versil Self Priming Centrifugal Water Pumps Fox Series

• Fast filling of overhead tank in houses/buildings upto 6 floors.
• High grade enameled copper motor windings for high operating efficiency.
• Double shielded pre-lubricated ball bearing for smooth operation.
• The rotating parts of motor and pump are dynamically balanced to ensure minimum noise and vibration.
• Protective Enclosure – Totally Enclosed Fan Cooled motor (TEFC).
• Pump can operate in wide voltage range.

   Specification

• kW 0.37 kW / 0.75 kW
• HP 0.50 HP / 1.00 HP
• Head Range 6 – 35 Meter
• Discharge Range 2800 – 450 LPH
• Rated Speed 2900 RPM
• Voltage Range 180 V – 240 V, 50Hz, Single Phase, AC

  Material Of Contruction

• Motor Body Aluminum Extruded
• Winding Material Pure Copper
• Pump Body Cast Iron FG200
• Impeller Forged Brass
• Shaft Stainless Steel 410
• Mechanical Seal Carbon / Ceramic
