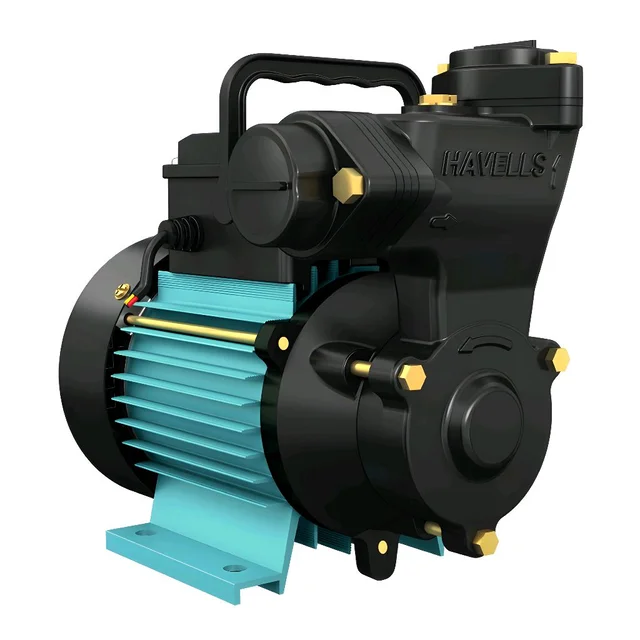

Havells 0.5HP Single Phase Self Priming Mini Monoblock Pump,

About this product

• 0.5 HP Single Phase Self Priming Mini Monoblock Pump

• Energy Efficient Motor

• Dynamically Balanced Rotor

• Anti‑clockwise rotation when viewed from the driving end

Product Specifications

• Motor Power: 0.5 HP (0.37 kW)

• Suction Size: 25 mm

• Delivery Size: 25 mm

• Discharge Range (Flow Rate): approximately 2000 lph

• Head Range: up to 6 m

• Speed: 2900 rpm

• Voltage: 180–260 V

• Insulation Class: Class F

• Cable Size: 1 sq mm

• Cable Length: 0.3 m

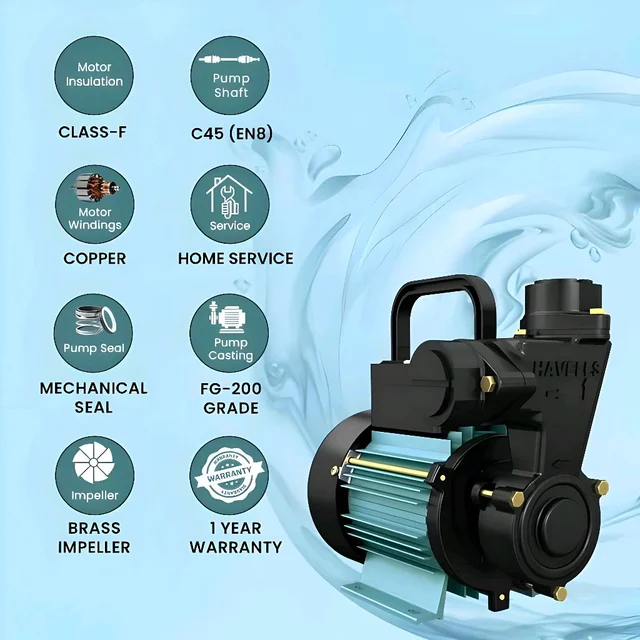

• Pump Casing: Cast Iron (FG 200)

• Shaft: C45 (EN8) carbon steel

• Impeller: Forged Brass

• Motor Winding: Copper

• Working Pressure: 2.1 kg/cm²

• Weight: About 5.8 kg

• Dimensions (L × W × H): 25.5 × 18.5 × 24.5 cm

Applications

Suitable for use in apartments, bungalows, farm‑houses, building construction, gardening, fountains, overhead water tanks, pressure booster systems, hotels, hospitals, and industrial water circulation setups.

Package Contents

• Pump unit

• Instruction manual

• Warranty card

• Strainer

Warranty & Manufacturing

• Warranty: 1 year

• Country of Origin: India

• Manufacturer/Packer: Havells India Ltd., Haridwar, Uttarakhand
